FTG Series

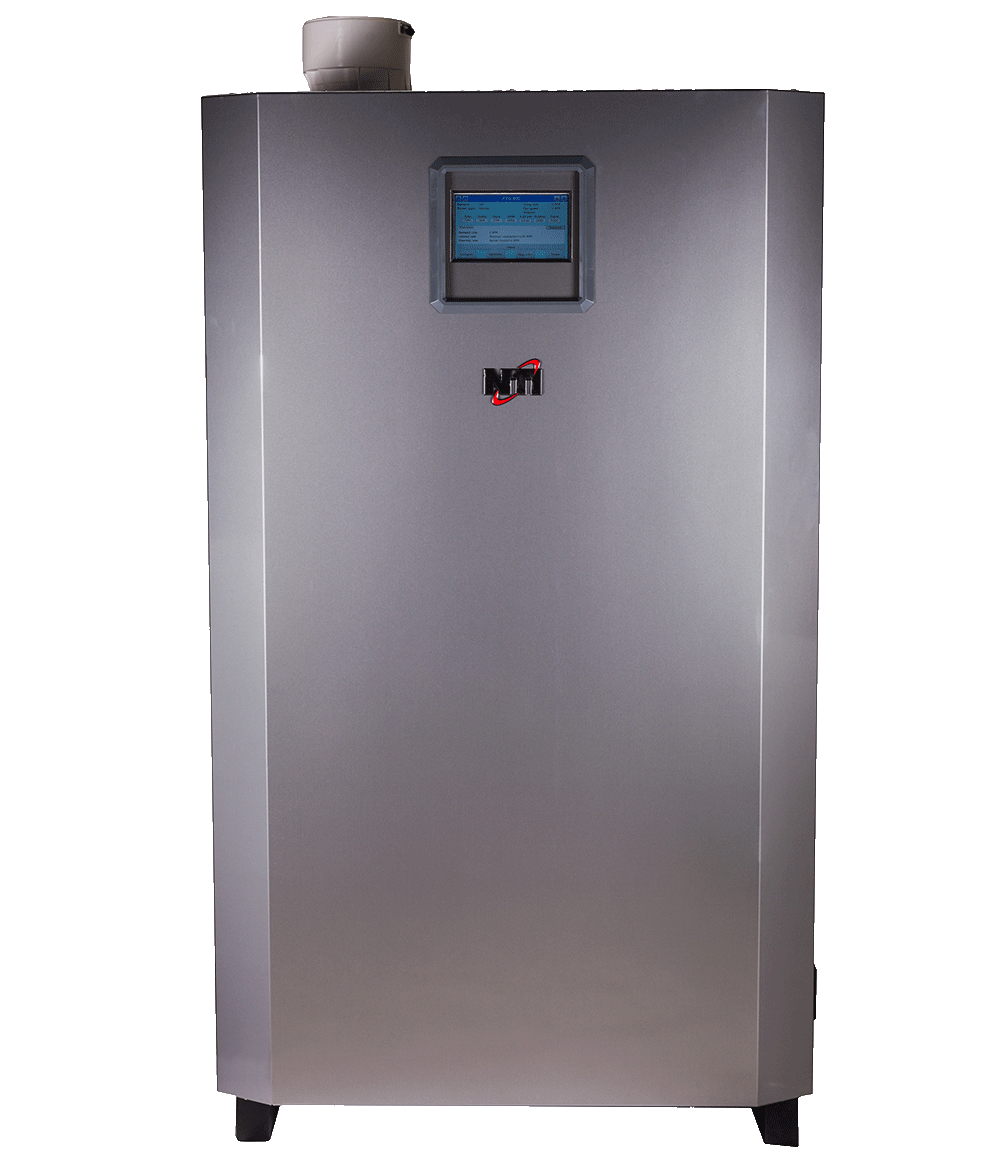

The FTG is a stainless steel high efficiency fire tube commercial boiler that ranges from 800 MBH to 2,350 MBH. The FTG features a dynamic multiple heat exchanger design, with single blower, gas valve and burner. The user-friendly touch screen display and advanced programmable features make it the ideal choice for dependable and highly demanding commercial applications.
Main Features
Touch screen intuitive display
High performance fire tube stainless steel heat exchanger
Integrated low water cut-off
Integrated combustion air filter
CSD-1 compliant
Advanced cascade settings
Sealed cabinet
Vents in PVC, CPVC or Poly Propylene
Specifications
Model | FTG800 | FTG1200 | FTG1400 | FTG2000 | FTG2200 | FTG2400 |
---|---|---|---|---|---|---|
Input Power | 80 -800 MBH | 120 - 1200 MBH | 140 - 1400 MBH | 235 - 2000 MBH | 235 - 2200 MBH | 235 - 2350 MBH |
Thermal Efficiency | 95% | 96.1% | 96% | 96% | 95.6% | 95.2% |
Heating capacity | 760 MBH | 1153 MBH | 1344 MBH | 1920 MBH | 2103 MBH | 2237 MBH |
Net AHRI Rating | 660 MBH | 1003 MBH | 1169 MBH | 1670 MBH | 1829 MBH | 1945 MBH |
Installation type | Indoor Floor Standing | Indoor Floor Standing | Indoor Floor Standing | Indoor Floor Standing | Indoor Floor Standing | Indoor Floor Standing |
Weight | 780 lb | 1210 lb | 1210 lb | 1710 lb | 1710 lb | 1710 lb |
Gas connection | 1 in NPT female | 11⁄4 in NPT female | 11⁄4 in NPT female | 11⁄2 in NPT male | 11⁄2 in NPT male | 11⁄2 in NPT male |
Water connection, Inlet | 3 in groove joint | 3 in groove joint | 3 in groove joint | 3 in groove joint | 3 in groove joint | 3 in groove joint |
Water connection, Outlet | 2 in groove joint | 3 in groove joint | 3 in groove joint | 3 in groove joint | 3 in groove joint | 3 in groove joint |
Air Inlet | 6 in (max 150 ft) | 8 in (max 150 ft) | 8 in (max 150 ft) | 8 in (max 150 ft) | 8 in (max 150 ft) | 8 in (max 150 ft) |
Flue | 6 in (max 150 ft) | 8 in (max 150 ft) | 8 in (max 150 ft) | 8 in (max 150 ft) | 8 in (max 150 ft) | 8 in (max 150 ft) |
Manuals & Guides
FTG Installation and Operation Manual
FTG Series Brochure EN
FTG Series Brochure FR
FTG Series Submittal
FTG Series Suggested Specification
FTV, Vmax and FTG Heat Exchanger Cleaning Instructions
Appendix A-TFT, Lx, Lx-WH and FTG Series Sola Display Operating Guide
TFT, Lx and FTG Series Protonode Startup Guide (Legacy Manual)
FTG Series Revit Native File
FTG800-2400 High Efficiency Boiler Detailed Cleaning Instructions
Important Warranty Information
Water Quality Best Practices
Warranty
Basic
Coverage
Residential: 5 years from installation date
Commercial: 2 years from installation date
Components Covered
All parts (including Pressure Vessel)
Extended
Coverage
Residential: Limited Lifetime
Commercial: 10 years from installation date
Components Covered
Pressure Vessel only
