COMING SOON! Verta Series

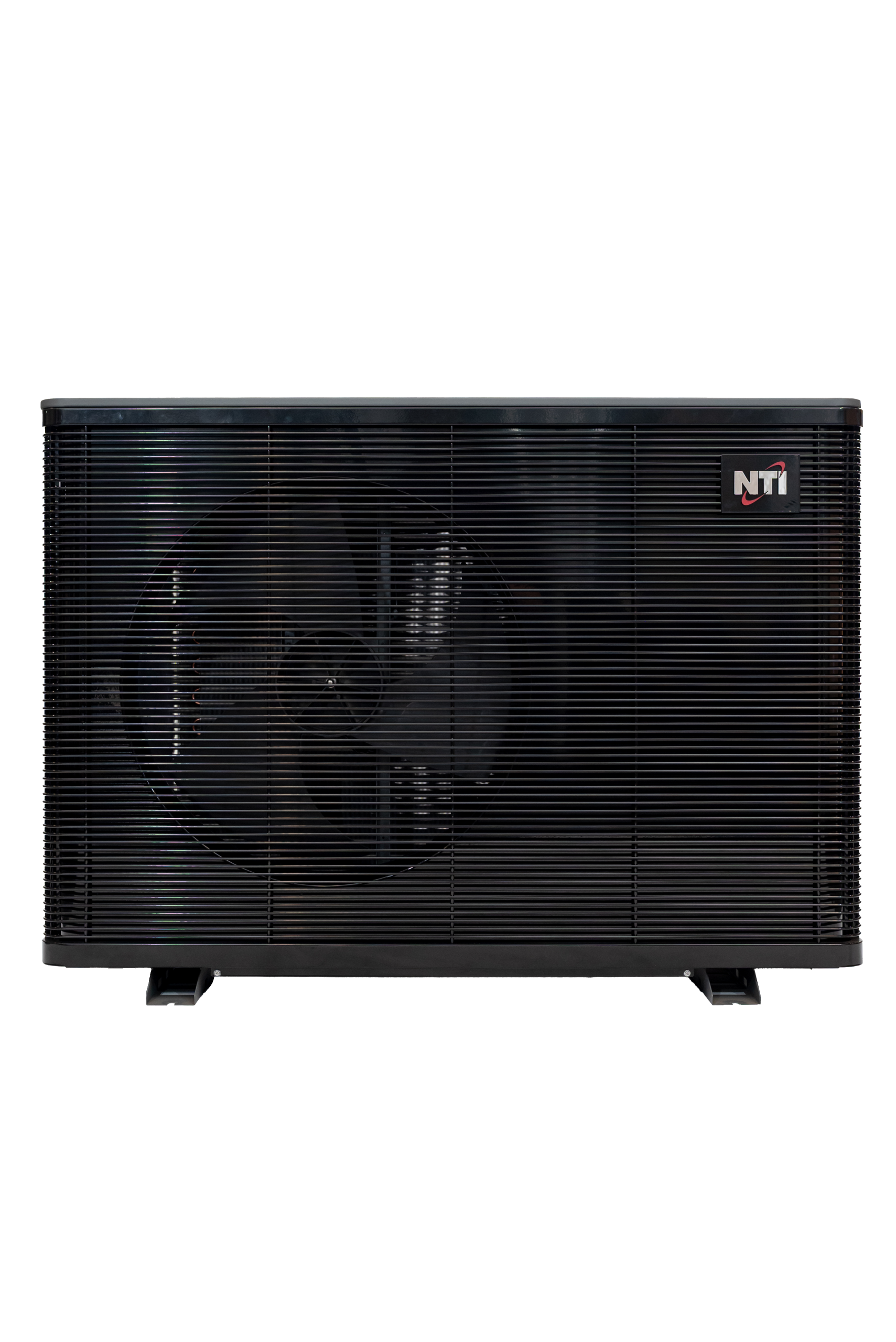

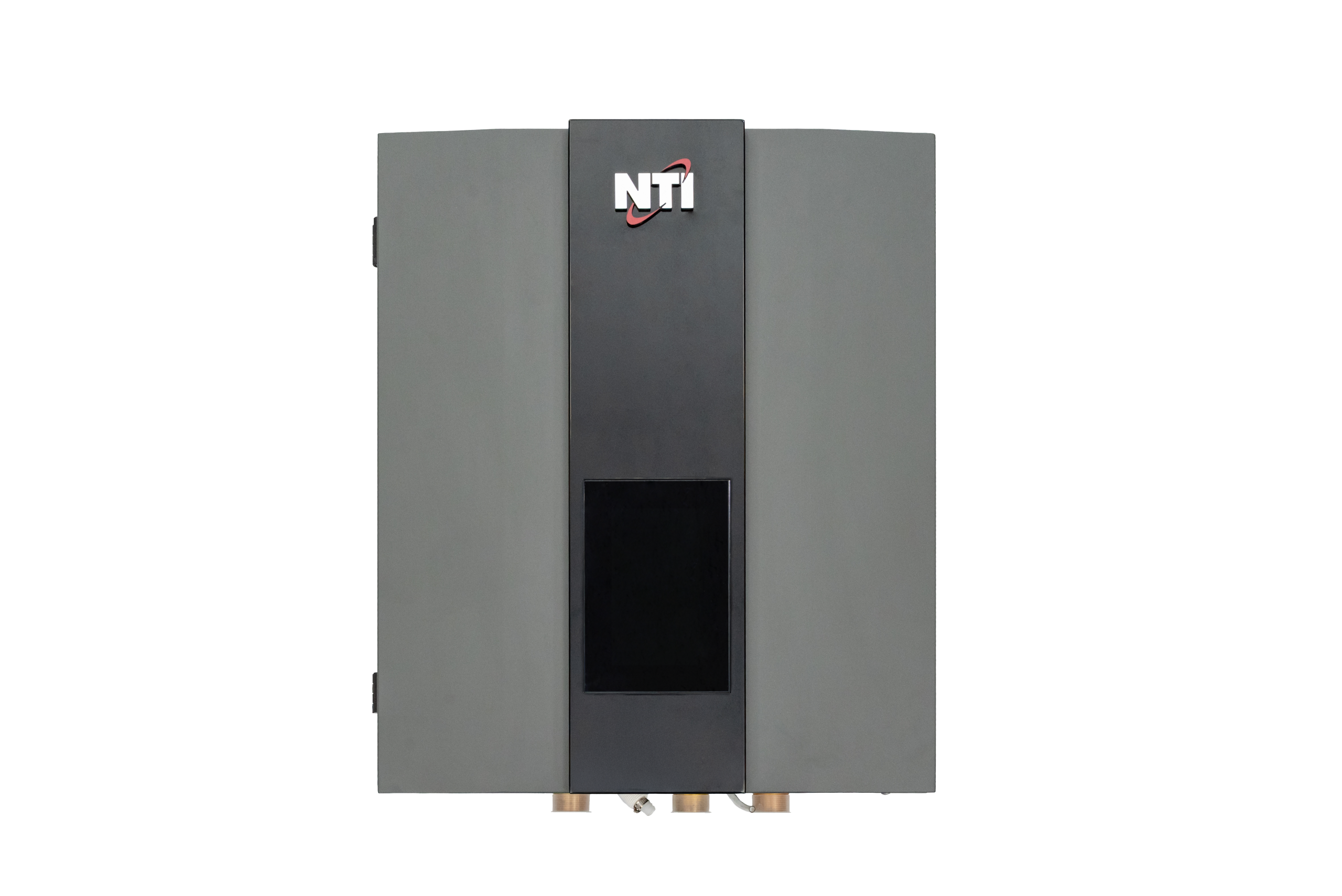

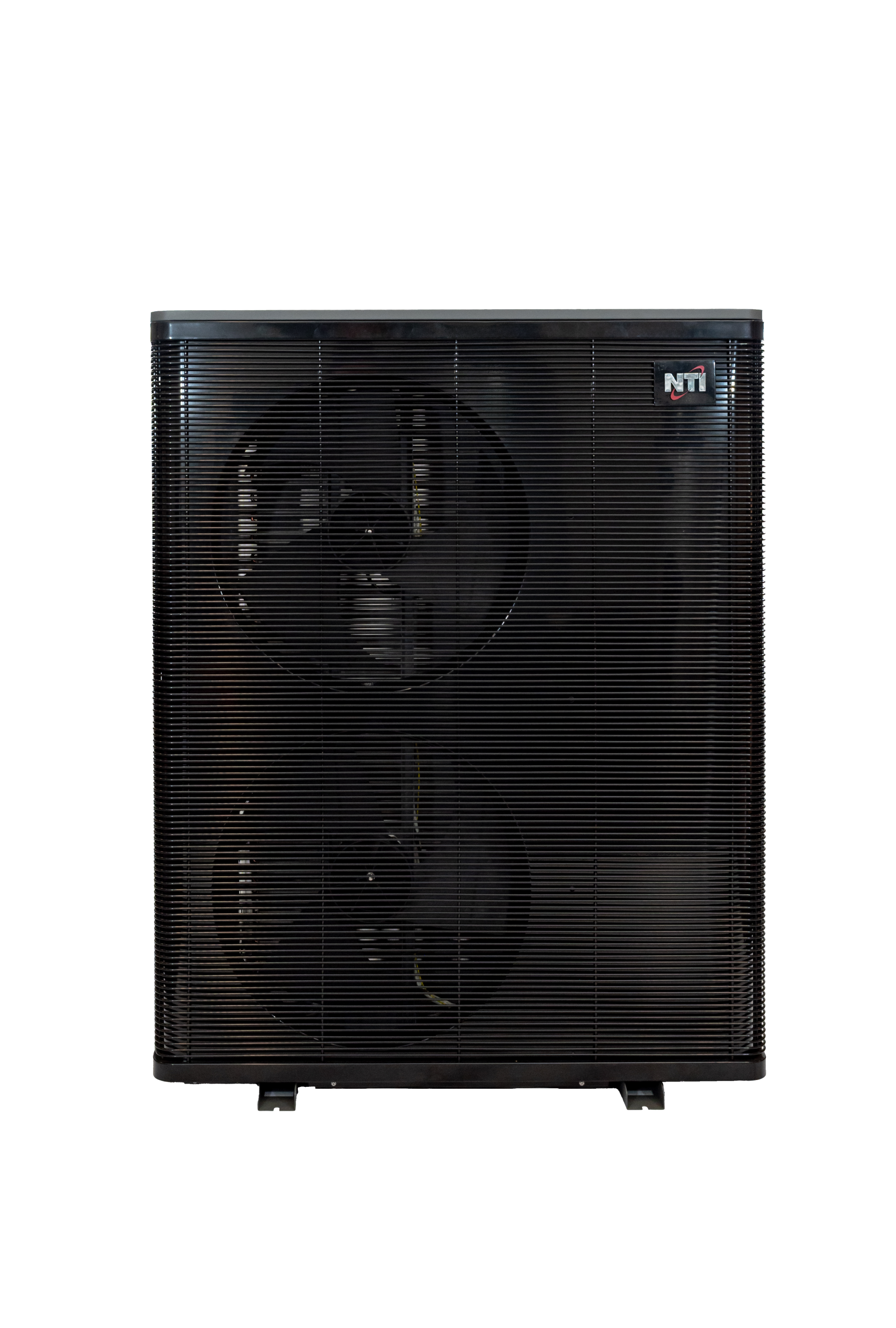

Introducing the Verta Series – our new air-to-water heat pump, designed for optimal performance in both single-family homes and apartments with limited space. Featuring R32 refrigerant, the Verta Series excels in delivering high water temperatures even in low ambient conditions, all while maintaining exceptional energy efficiency. This Monoblock Air-to-Water Heat Pump requires pairing with an indoor unit, available in two options: the Control Box and Hydrobox. Both indoor units are wall-mounted and come equipped with a 7” touchscreen interface and a main control board (PCB). Installation is streamlined with a simple 24-gauge, 3-wire cable (provided by the factory) for communication with the outdoor unit, ensuring a quick and efficient setup.
Main Features
High Temps even in Low Ambients
Touch Screen Control
Auto Heat Cool Switch
Specifications
| Outdoor Unit Specifications | Units | NHP32-036 | NHP32-060 |
|
|---|---|---|---|---|
| Cooling | Capacity Range | BTU/hr(kW) | 670-14950（0.197-4.382） | 18,000-74,000 (5.3-21.7) |
| Efficiency Range | EER | 8.15-22.97 | 7.85-28.8 | |
| Efficiency | IPLV | 20.64 | 21.04 |
|
| Ambient Temp Range | DegF(DegC) | 55-125 (12.8-51.7) | 55-125 (12.8-51.7) | |
| Delivered Water Temp Range | DegF(DegC) | 39-49 (3.9-9.4) | 39-49（3.9-9.4） | |
| Heating | Capacity Range | BTU/hr(kW) | 1,600-42,900 (0.7-12.6) | 3,400-73,500 (1-21.5) |
| Efficiency Range | COP | 0.96-7.10 | 0.58-6.97 |
|
| Ambient Temp Range | DegF(DegC) | -13~113（-25~45） | -13~113（-25~45） | |
| Delivered Water Temp Range | DegF(DegC) | 68-140（20-60） | 68-140（20-60） | |
| Electrical | Power | V/Ph/Hz | 208-230/1/60 | 208-230/1/60 |
| Fan Motor | A | 0.6 | 0.6 x 2 | |
| Compressor Motor | A | 14.0 | 28.7 | |
| MCA | A | 24.5 | 41 | |
| MOPD | A | 30 | 60 | |
| SCCR | kA | 5 | 5 | |
| Refrigerant | Type | R32 | R32 | |
| Factory Charge | lbs(kg) | 3.97（1.8） | 5.73（2.6） | |
| Normal Pressure Low Side | PSI | 609 | 609 | |
| Normal Pressure High Side | PSI | 174 | 174 | |
| Fan | Quantity | 1 | 2 | |
| Power Input | W | 90 | 90*2 | |
| Type | Brushless DC motor | Brushless DC motor | ||
| Max Speed | RPM | 900 | 900 | |
| Sound (1meter) | Range | dBa | 40-50 | 44-54 |
| Hydronic | Rated Flow | GPM | 9.1 | 14.4 |
| Max Water Temp | DegF(DegC) | 140（60） | 140（60） | |
| Piping Connections | Inch (cm) | 1-1/4" NPT（DN32） | 1-1/4" NPT（DN32） | |
| Rated Pressure Drop | PSI (ft W.C) | 3.6 (8.4) | 7.66 (17.7) | |
| Compressor | Type | Rotary Inverter | Rotary Inverter | |
| Speed Range | HZ | 30-90 | 30-76 | |
| Brand | Mitsubishi | Mitsubishi | ||
| Quantity | 1 | 1 | ||
| Indoor Unit Product Specifications | Units | HYDRO32-7 | CONTROL32-7 | |
|---|---|---|---|---|
| Unit Power Supply | V/Ph/Hz | 208-230/1/60 | 115/1/60 | |
| Input Power | kW | 0.2 | 0.2 | |
| Unit Maximum Overload Protection | A | 15 | 15 | |
| Heater Maximum Overload Protection | A | 20 | / | |
| Heater Supply | V/Hz | 208-230V/60 | / | |
| Heater Rated Input Power | kW | 2.4/3.0 | / | |
| Piping Connection | Inch | NPT 1 1/4 | / |
