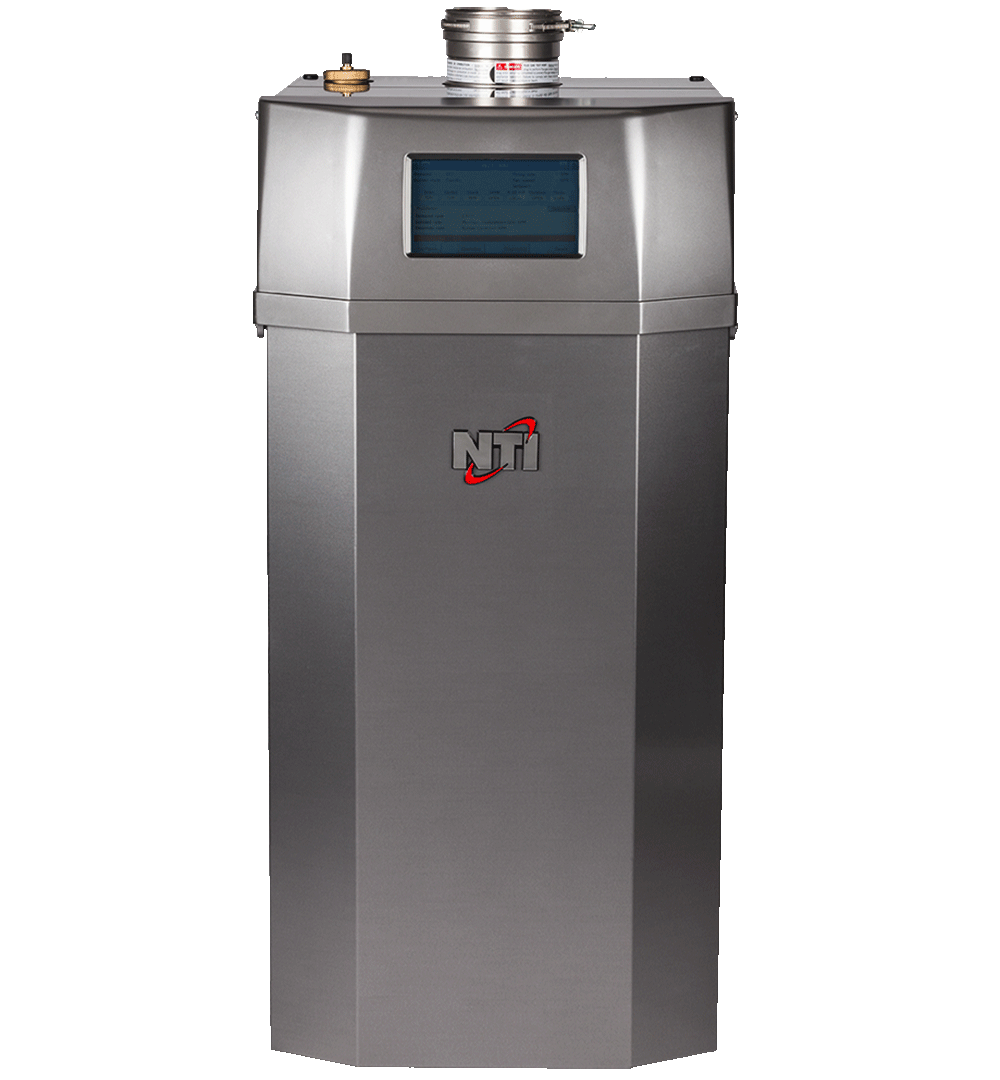

Lx-WH Series
The Lx-WH combines quality with unmatched efficiency while providing a tremendous output capacity. The high power stainless steel heat exchanger is easy to clean and install. The touch screen display is user friendly, and the Lx-WH offers advanced programming features.
Main Features
Touch screen intuitive display
Easy to clean stainless-steel heat exchanger
Floor or wall-mount options
Ideal coupling with Trin & Stor Storage tanks
High power sizes up to 800 MBH
Easy access to the display and internal components
Advanced cascade settings
Specifications
| Model | Lx200WH | Lx300WH | Lx400WH | Lx500WH | Lx600WH | Lx800WH |
|---|---|---|---|---|---|---|
| Input Power | 25 - 199 MBH | 55 - 275 MBH | 75 - 399 MBH | 100 - 500 MBH | 120 - 600 MBH | 160 - 800 MBH |
| GPH at 100°F T Rise | 229 GPH | 317 GPH | 460 GPH | 576 GPH | 691 GPH | 922 GHP |
| Thermal Efficiency | 96% | 96% | 96% | 96% | 96% | 96% |
| Installation type | Indoor Floor Standing (Wall Hung kit included) | Indoor Floor Standing (Wall Hung kit included) | Indoor Floor Standing (Wall Hung kit included) | Indoor Floor Standing | Indoor Floor Standing | Indoor Floor Standing |
| Weight | 125 lb | 180 lb | 225 lb | 320 lb | 380 lb | 475 lb |
| Gas connection | 1⁄2 in NPT female | 1⁄2 in NPT female | 3⁄4 in NPT female | 3⁄4 in NPT male | 1 in NPT male | 1 in NPT male |
| Water connections | 1 in NPT female | 1 in NPT female | 1 1⁄4 in NPT female | 2 in NPT female | 2 in NPT female | 2 in NPT female |
| Air Inlet | 3 in (max 105 ft), 4 in (max 105 ft) | 4 in (max 100 ft), 6 in (max 100 ft) | 4 in (max 100 ft), 6 in (max 100 ft) | 4 in (max 100 ft), 6 in (max 100 ft) | 4 in (max 100 ft), 6 in (max 100 ft) | 6 in (max 100 ft) |
| Flue | 3 in (max 105 ft), 4 in (max 105 ft) | 4 in (max 100 ft), 6 in (max 100 ft) | 4 in (max 100 ft), 6 in (max 100 ft) | 4 in (max 100 ft), 6 in (max 100 ft) | 4 in (max 100 ft), 6 in (max 100 ft) | 6 in (max 100 ft) |
Manuals & Guides
Lx-WH Brochure EN
Lx-WH Series Brochure FR
Lx-WH Installation and Operation Manual
Lx and Lx-WH 150-400 Quick Start Guide
LX200-WH Series Submittal
LX300-WH Series Submittal
LX400-WH Series Submittal
LX500-WH Series Submittal
LX600-WH Series Submittal
LX700-WH Series Submittal
LX800-WH Series Submittal
Appendix A-TFT, Lx, Lx-WH and FTG Series Sola Display Operating Guide
Tx Lx and Lx-WH Series Heat Exchanger Cleaning Instructions
Important Warranty Information
Water Quality Best Practices
LX LP Conversion Instructions
Warranty
Basic
Coverage
2 years from installation date
Components Covered
All parts (including Pressure Vessel)
Extended
Coverage
5 years from installation date
Components Covered
Pressure Vessel only
